錦華隆，專注電鍍加工及技術開發 > 塑料薄膜電鍍 > 產品介紹

電鍍鈦合金電鍍模切/接合背膠薄膜型沖擊吸收亞克力泡棉

電鍍方式單一電鍍多元電鍍黑色電鍍防銹電鍍

鍍層（涂層）方式

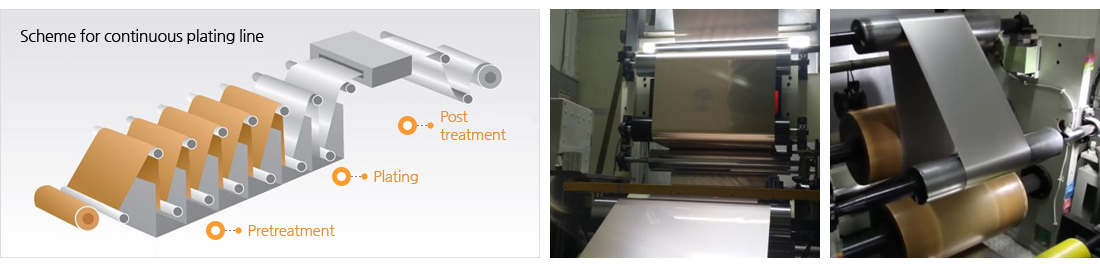

擁有三條卷對卷（Roll to Roll）寬幅（500毫米以上）全自動連續電鍍生產線！

第一條	銅箔+特殊電鍍（EMI屏蔽散熱膠帶）	第二條	不銹鋼/白銅+鍍鎳（FPCB增強板），銅箔+鍍金銅箔（端子）
第三條	銅箔+鍍鎳（二次電池保護電路）

對于對用于電氣?電子零配件的金屬箔（Metal Foil），為了給予客戶要求的物性及化學特性，進行在單一金屬或兩種以上金屬上進行電鍍處理。通過連續生產線來組成的工程，在厚度為10-300?的金屬箔上可以進行電鍍處理，厚度為0.1-5?的多種合金。同時，本公司獨有的“粗化處理（Nodular Treatment）”技術通過調整金屬納米粉的大小及形狀可以加強與聚合物結合力，加上提高電氣特性。

涂層方式（華城工廠）

卷對卷（Roll to Roll）寬幅全自動連續涂層生產線！- 錦華隆

寬度	1700毫米	速度	最大速度：100m/min
涂層方式	雕刻，微雕刻，逗號（共3種）	干燥機	4m X 5區（最大溫度：180℃）

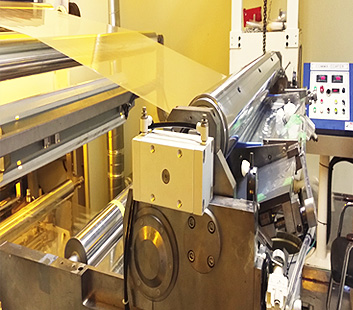

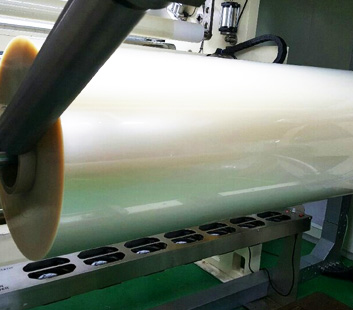

預干燥機和凹版涂布機

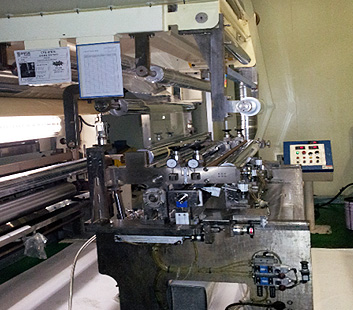

微凹版涂布機

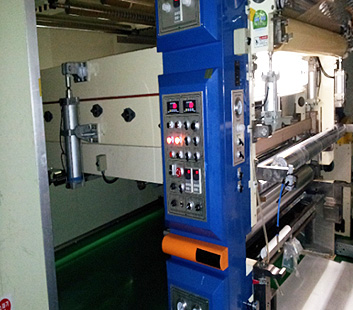

逗號涂布機

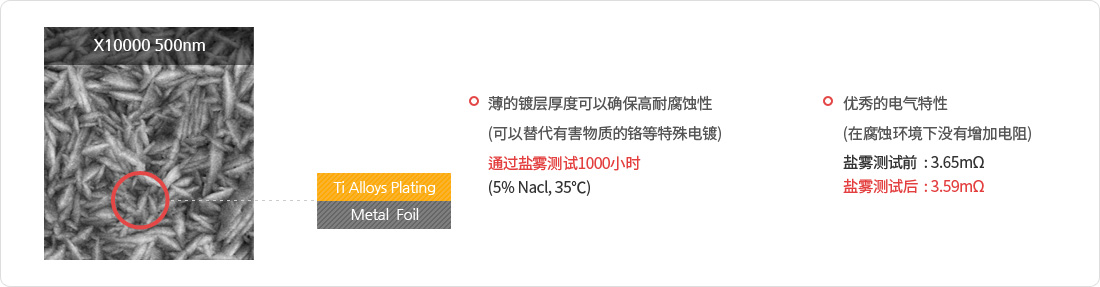

鈦合金電鍍產品結構和主要特點

鈦合金電鍍適用行業

隨著產業高度化增加空氣污染和腐蝕環境惡化，同時環保政策的出現來加速成長電動汽車市場,需要具備優秀電氣特性和高耐腐蝕性的材料的開發。因此，錦華隆開發成功鈦合金電鍍技術，這個技術超越了在產業廣泛使用的鍍鎳的有限性。

汽車電池

顯示屏電子配件

核電和石化
熱交換裝置

航空航天分野

高速模切機

E-接合機

B-高速模切機

E-接合機

D-高速模切機

E-后加工接合機

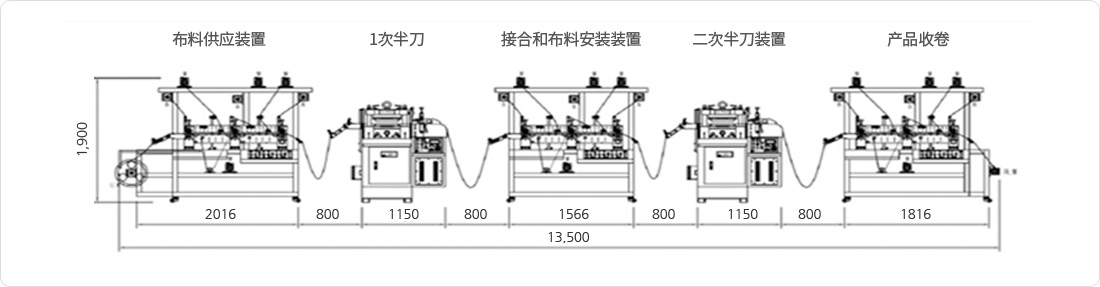

生產線

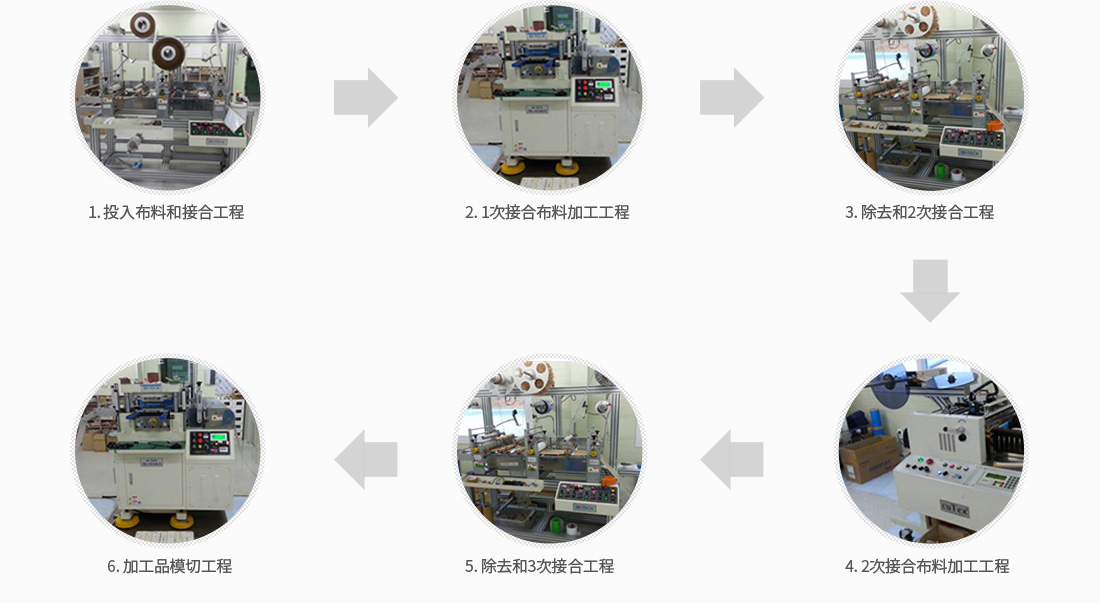

高速作業順序

背膠

卷對卷寬幅、全自動連續涂裝線！ -錦華隆

卷寬	1700mm	速度	Max 100m/min
涂布法	凹印、微凹印、逗號（共3種）	烘干機	4m x 5區(最大溫度：180℃)

預干燥機和凹版涂布機

微凹版涂布機

逗號涂布機

粘合用

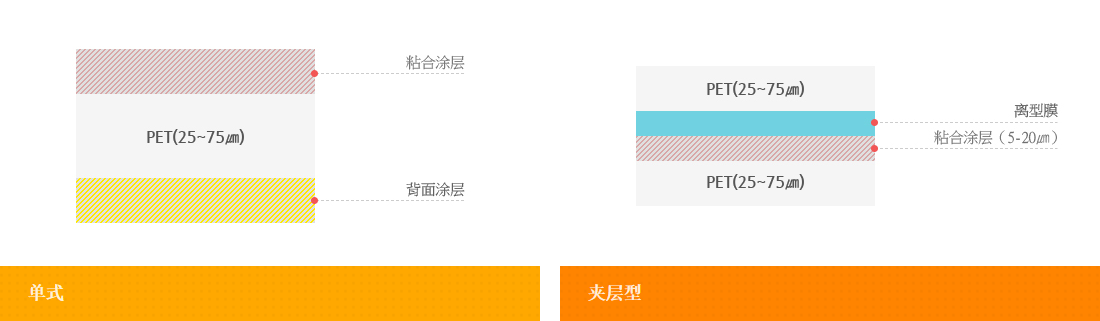

粘合涂層_丙烯酸&硅

采用微雕及逗號涂布機進行薄膜粘合涂層處理

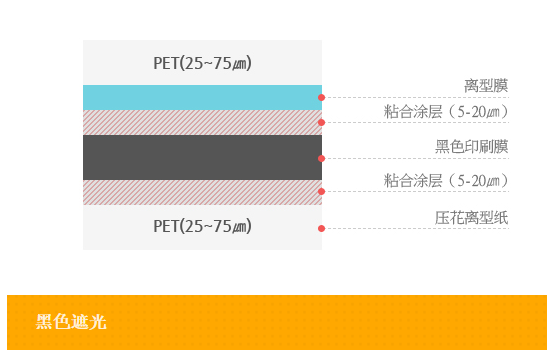

粘合涂層_黑色遮光膜

適用于手機側面及OLED用背面全體

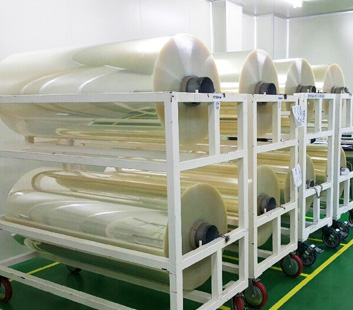

產品照片

薄膜型沖擊吸收亞克力泡棉

SEM 圖片

特點

適用和環境規制

特點

測定方法(沖擊吸收)

<div class="plastic_t" style="box-sizing: border-box; margin-bottom: 50px; background-image: url("uploads/images/h3_bg.png"); background-position: left center; background-size: initial; background-repeat: no-repeat; background-attachment: initial; background-origin: initial; background-clip: initial; font-family: "Microsoft Yahei", sans-serif; font-size: 14px; text-wrap: wrap;"><span style="box-sizing: border-box; display: block; padding-left: 30px; font-size: 25px; font-weight: 600; color: rgb(5, 5, 5);"><span style="color: rgb(5, 5, 5); font-family: "Microsoft Yahei", sans-serif; font-size: 25px; font-weight: 600; text-wrap: wrap;">鍍層（涂層）方式</span></span></div><div class="plastic_w" style="box-sizing: border-box; line-height: 30px; color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"><p style="box-sizing: border-box; padding-left: 0px; margin-top: 0px; margin-bottom: 0px;">擁有三條卷對卷（Roll to Roll）寬幅（500毫米以上）全自動連續電鍍生產線！</p></div><div class="common_table2" style="box-sizing: border-box; margin: 0px 0px 50px; font-family: "Microsoft Yahei", sans-serif; font-size: 14px; text-wrap: wrap;"><table width="1136"><tbody style="box-sizing: border-box;"><tr style="box-sizing: border-box;" class="firstRow"><th scope="row" class="left" style="box-sizing: border-box; padding: 12px 0px; border-color: gainsboro; text-align: left; vertical-align: middle; border-style: solid; color: rgb(86, 86, 86); font-size: 16px;border-top: 1px solid #044E87;">第一條</th><td style="box-sizing: border-box; padding: 12px 0px; border-color: gainsboro; vertical-align: middle; border-style: solid; font-size: 16px; color: rgb(86, 86, 86); border-width: 1px;border-top: 1px solid #044E87;">銅箔+特殊電鍍（EMI屏蔽散熱膠帶）</td><th scope="row" class="left" style="box-sizing: border-box; padding: 12px 0px; border-color: gainsboro; text-align: left; vertical-align: middle; border-style: solid; color: rgb(86, 86, 86); font-size: 16px;border-top: 1px solid #044E87;">第二條</th><td style="box-sizing: border-box; padding: 12px 0px; border-color: gainsboro; vertical-align: middle; border-style: solid; font-size: 16px; color: rgb(86, 86, 86); border-width: 1px;border-top: 1px solid #044E87;">不銹鋼/白銅+鍍鎳（FPCB增強板），銅箔+鍍金銅箔（端子）</td></tr><tr style="box-sizing: border-box;"><th scope="row" class="left" style="box-sizing: border-box; padding: 12px 0px; border-color: gainsboro; text-align: left; vertical-align: middle; border-style: solid; color: rgb(86, 86, 86); font-size: 16px;">第三條</th><td style="box-sizing: border-box; padding: 12px 0px; border-color: gainsboro; vertical-align: middle; border-style: solid; font-size: 16px; color: rgb(86, 86, 86); border-width: 1px;">銅箔+鍍鎳（二次電池保護電路）</td><th scope="row" class="left" style="box-sizing: border-box; padding: 12px 0px; border-color: gainsboro; text-align: left; vertical-align: middle; border-style: solid; color: rgb(86, 86, 86); font-size: 16px;"><br/></th><td style="box-sizing: border-box; padding: 12px 0px; border-color: gainsboro; vertical-align: middle; border-style: solid; font-size: 16px; color: rgb(86, 86, 86); border-width: 1px;"><br/></td></tr></tbody></table></div><div class="plastic_w" style="box-sizing: border-box; line-height: 30px; color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"><p style="box-sizing: border-box; padding-left: 0px; margin-top: 0px; margin-bottom: 0px;">對于對用于電氣?電子零配件的金屬箔（Metal Foil），為了給予客戶要求的物性及化學特性，進行在單一金屬或兩種以上金屬上進行電鍍處理。通過連續生產線來組成的工程，在厚度為10-300?的金屬箔上可以進行電鍍處理，厚度為0.1-5?的多種合金。同時，本公司獨有的“粗化處理（Nodular Treatment）”技術通過調整金屬納米粉的大小及形狀可以加強與聚合物結合力，加上提高電氣特性。</p></div><div class="plastic_img" style="box-sizing: border-box; font-family: "Microsoft Yahei", sans-serif; font-size: 14px; text-wrap: wrap;"><p style="text-align:center"><img src="/uploads/allimg/20240831/1-240S10UPX39.jpg"/></p></div><p><br/></p><div class="plastic_t" style="text-wrap: wrap; box-sizing: border-box; margin-bottom: 50px; background-image: url("uploads/images/h3_bg.png"); background-position: left center; background-size: initial; background-repeat: no-repeat; background-attachment: initial; background-origin: initial; background-clip: initial; font-family: "Microsoft Yahei", sans-serif; font-size: 14px;"><span style="box-sizing: border-box; display: block; padding-left: 30px; font-size: 25px; font-weight: 600; color: rgb(5, 5, 5);"><span style="color: rgb(5, 5, 5); font-family: "Microsoft Yahei", sans-serif; font-size: 25px; font-weight: 600; text-wrap: wrap;">涂層方式（華城工廠）</span></span></div><div class="plastic_w" style="box-sizing: border-box; line-height: 30px; color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"><p style="box-sizing: border-box; padding-left: 0px; margin-top: 0px; margin-bottom: 0px;">卷對卷（Roll to Roll）寬幅全自動連續涂層生產線！- 錦華隆</p></div><div class="common_table2" style="box-sizing: border-box; margin: 0px 0px 50px; font-family: "Microsoft Yahei", sans-serif; font-size: 14px; text-wrap: wrap;"><table width="1136"><tbody style="box-sizing: border-box;"><tr style="box-sizing: border-box;" class="firstRow"><th scope="row" class="left" style="box-sizing: border-box; padding: 12px 0px; border-color: gainsboro; text-align: left; vertical-align: middle; border-style: solid; color: rgb(86, 86, 86); font-size: 16px;border-top: 1px solid #044E87;">寬度</th><td style="box-sizing: border-box; padding: 12px 0px; border-color: gainsboro; vertical-align: middle; border-style: solid; font-size: 16px; color: rgb(86, 86, 86); border-width: 1px;border-top: 1px solid #044E87;">1700毫米</td><th scope="row" class="left" style="box-sizing: border-box; padding: 12px 0px; border-color: gainsboro; text-align: left; vertical-align: middle; border-style: solid; color: rgb(86, 86, 86); font-size: 16px;border-top: 1px solid #044E87;">速度</th><td style="box-sizing: border-box; padding: 12px 0px; border-color: gainsboro; vertical-align: middle; border-style: solid; font-size: 16px; color: rgb(86, 86, 86); border-width: 1px;border-top: 1px solid #044E87;">最大速度：100m/min</td></tr><tr style="box-sizing: border-box;"><th scope="row" class="left" style="box-sizing: border-box; padding: 12px 0px; border-color: gainsboro; text-align: left; vertical-align: middle; border-style: solid; color: rgb(86, 86, 86); font-size: 16px;">涂層方式</th><td style="box-sizing: border-box; padding: 12px 0px; border-color: gainsboro; vertical-align: middle; border-style: solid; font-size: 16px; color: rgb(86, 86, 86); border-width: 1px;">雕刻，微雕刻，逗號（共3種）</td><th scope="row" class="left" style="box-sizing: border-box; padding: 12px 0px; border-color: gainsboro; text-align: left; vertical-align: middle; border-style: solid; color: rgb(86, 86, 86); font-size: 16px;">干燥機</th><td style="box-sizing: border-box; padding: 12px 0px; border-color: gainsboro; vertical-align: middle; border-style: solid; font-size: 16px; color: rgb(86, 86, 86); border-width: 1px;">4m X 5區（最大溫度：180℃）</td></tr></tbody></table></div><section class="three_list_ar" style="display: grid;grid-template-columns: repeat(3,1fr);grid-gap: 30px;"><section><section><section><section><p style="text-align:center"><img src="/uploads/allimg/20240831/1-240S10Z14IU.jpg" width="100%"/></p></section><section style="text-align: center;"><span style="color: rgb(51, 51, 51); font-family: "Microsoft Yahei", sans-serif; font-size: 18px; font-weight: 600; text-align: center; text-wrap: wrap;">預干燥機和凹版涂布機</span></section></section></section></section><section><section><section><section><p style="text-align:center"><img src="/uploads/allimg/20240831/1-240S10Z239245.jpg" width="100%"/></p></section><section style="text-align: center;"><span style="color: rgb(51, 51, 51); font-family: "Microsoft Yahei", sans-serif; font-size: 18px; font-weight: 600; text-align: center; text-wrap: wrap;">微凹版涂布機</span></section></section></section></section><section><section><section><section><p style="text-align:center"><img src="/uploads/allimg/20240831/1-240S10Z314394.jpg" width="100%"/></p></section><section style="text-align: center;"><span style="color: rgb(51, 51, 51); font-family: "Microsoft Yahei", sans-serif; font-size: 18px; font-weight: 600; text-align: center; text-wrap: wrap;">逗號涂布機</span></section></section></section></section></section>

<div class="plastic_t" style="text-wrap: wrap; box-sizing: border-box; margin-bottom: 50px; background-image: url("uploads/images/h3_bg.png"); background-position: left center; background-size: initial; background-repeat: no-repeat; background-attachment: initial; background-origin: initial; background-clip: initial; font-family: "Microsoft Yahei", sans-serif; font-size: 14px;"><span style="box-sizing: border-box; display: block; padding-left: 30px; font-size: 25px; font-weight: 600; color: rgb(5, 5, 5);"><span style="color: rgb(5, 5, 5); font-family: "Microsoft Yahei", sans-serif; font-size: 25px; font-weight: 600; text-wrap: wrap;">電鍍說明</span></span></div><p style="box-sizing: border-box; padding-left: 0px; margin-top: 0px; margin-bottom: 0px; color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">本公司所采取的單一電鍍是主要在銅、不銹鋼等多種金屬箔上進行電鍍表面處理。</p><p style="box-sizing: border-box; padding-left: 0px; margin-top: 0px; margin-bottom: 0px; color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">經過上述過程而生產的產品可取代高價金屬或稀有金屬，不僅能賦予電氣特性及電磁特性，也能加強產品的防銹性。</p><p style="box-sizing: border-box; padding-left: 0px; margin-top: 0px; margin-bottom: 0px; color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">同時，單一電鍍方式的特點是在對不同截面進行不同形狀的電鍍處理，光面（shiny side）及粗面（matte side）各有獨特的形狀。</p><p style="box-sizing: border-box; padding-left: 0px; margin-top: 0px; margin-bottom: 0px; color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">其中，為了提高其與聚合物（PE、PI、PET）之間的結合力，通過采用以納米大小為單位的金屬粗化（Nodular）技術而制造粗面。</p><p style="box-sizing: border-box; padding-left: 0px; margin-top: 0px; margin-bottom: 0px; color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">為了提高最終產品（成品）的外觀，在光面上進行均一的電鍍處理。</p><section class="two_list_ar" style="display: flex;gap: 20px;text-align: center;"><section class="" style="flex: 0.5;"><p><br/></p><p><img src="/uploads/allimg/20240831/1-240S10944404C.jpg"/></p><br/><p><span style="color: rgb(51, 51, 51); font-family: "Microsoft Yahei", sans-serif; font-size: 18px; font-weight: 600; text-align: center; text-wrap: wrap;">代表性原材料</span></p><p><span style="color: rgb(51, 51, 51); font-family: "Microsoft Yahei", sans-serif; font-size: 15px; text-align: center; text-wrap: wrap;">壓延銅箔 / 電解銅箔 / 不銹鋼箔 / 鋁箔</span></p></section><section class="" style="flex: 0.5;"><p><br/></p><p><img src="/uploads/allimg/20240831/1-240S10945103G.jpg"/></p><p><span style="color: rgb(51, 51, 51); font-family: "Microsoft Yahei", sans-serif; font-size: 18px; font-weight: 600; text-align: center; text-wrap: wrap;"><br/></span></p><p><span style="color: rgb(51, 51, 51); font-family: "Microsoft Yahei", sans-serif; font-size: 18px; font-weight: 600; text-align: center; text-wrap: wrap;">代表性電鍍材料</span></p><p><span style="color: rgb(51, 51, 51); font-family: "Microsoft Yahei", sans-serif; font-size: 15px; text-align: center; text-wrap: wrap;">金 / 銀 / 銅 / 鎳 / 錫 / 鋅</span></p></section></section><p style="text-wrap: wrap;"><br/></p><div class="plastic_t" style="text-wrap: wrap; box-sizing: border-box; margin-bottom: 50px; background-image: url("uploads/images/h3_bg.png"); background-position: left center; background-size: initial; background-repeat: no-repeat; background-attachment: initial; background-origin: initial; background-clip: initial; font-family: "Microsoft Yahei", sans-serif; font-size: 14px;"><span style="box-sizing: border-box; display: block; padding-left: 30px; font-size: 25px; font-weight: 600; color: rgb(5, 5, 5);"><span style="color: rgb(5, 5, 5); font-family: "Microsoft Yahei", sans-serif; font-size: 25px; font-weight: 600; text-wrap: wrap;">產品、電鍍示例</span></span></div><p style="text-align:center"><img src="/uploads/allimg/20240831/1-240S1094AB20.jpg"/></p><p style="margin-top: 0px; margin-bottom: 0px; box-sizing: border-box; padding-left: 0px;"><span style="color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">單面/雙面都可進行表面處理，在各種元素材料上利用許多材料進行電鍍處理</span></p><p style="margin-top: 0px; margin-bottom: 0px; box-sizing: border-box; padding-left: 0px;"><span style="color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"><br/></span></p><p style="margin-top: 0px; margin-bottom: 0px; box-sizing: border-box; padding-left: 0px;"><br/></p><div class="plastic_t" style="text-wrap: wrap; box-sizing: border-box; margin-bottom: 50px; background-image: url("uploads/images/h3_bg.png"); background-position: left center; background-size: initial; background-repeat: no-repeat; background-attachment: initial; background-origin: initial; background-clip: initial; font-family: "Microsoft Yahei", sans-serif; font-size: 14px;"><span style="box-sizing: border-box; display: block; padding-left: 30px; font-size: 25px; font-weight: 600; color: rgb(5, 5, 5);"><span style="color: rgb(5, 5, 5); font-family: "Microsoft Yahei", sans-serif; font-size: 25px; font-weight: 600; text-wrap: wrap;">電鍍表面照片</span></span></div><p style="margin-top: 0px; margin-bottom: 0px; box-sizing: border-box; padding-left: 0px;"><br style="text-wrap: wrap;"/></p><section class="two_list_ar" style="display: flex;gap: 20px;text-align: center;"><section class="" style="flex: 0.5;"><div><p><img src="/uploads/allimg/20240831/1-240S1095U1436.jpg"/></p></div><p><span style="color: rgb(51, 51, 51); font-family: "Microsoft Yahei", sans-serif; font-size: 18px; font-weight: 600; text-align: center; text-wrap: wrap;"><br/></span></p><p><span style="color: rgb(51, 51, 51); font-family: "Microsoft Yahei", sans-serif; font-size: 18px; font-weight: 600; text-align: center; text-wrap: wrap;">亞光面形態</span></p></section><section class="" style="flex: 0.5;"><p><img src="/uploads/allimg/20240831/1-240S1095931358.jpg"/></p><p><br/></p><p><span style="color: rgb(51, 51, 51); font-family: "Microsoft Yahei", sans-serif; font-size: 18px; font-weight: 600;">閃亮的一面</span></p></section></section><p><br/></p><div class="plastic_t" style="text-wrap: wrap; box-sizing: border-box; margin-bottom: 50px; background-image: url("uploads/images/h3_bg.png"); background-position: left center; background-size: initial; background-repeat: no-repeat; background-attachment: initial; background-origin: initial; background-clip: initial; font-family: "Microsoft Yahei", sans-serif; font-size: 14px;"><span style="box-sizing: border-box; display: block; padding-left: 30px; font-size: 25px; font-weight: 600; color: rgb(5, 5, 5);"><span style="color: rgb(5, 5, 5); font-family: "Microsoft Yahei", sans-serif; font-size: 25px; font-weight: 600; text-wrap: wrap;">電鍍說明</span></span></div><p><br/></p><section class="three_list_ar" style="display: grid;grid-template-columns: repeat(4,1fr);grid-gap: 30px;"><section><section><section><section><p style="text-align:center"><img src="/uploads/allimg/20240831/1-240S1100110b3.png"/></p></section><section><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">Cu / SUS</span></span><p style="box-sizing: border-box; padding-left: 0px; margin-top: 12px; margin-bottom: 0px; font-size: 15px; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">手機、液晶</p><br/></section></section></section></section><section><section><section><section><p style="text-align:center"><img src="/uploads/allimg/20240831/1-240S1100306133.png"/></p></section><section><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">Cu / Al</span></span><p style="box-sizing: border-box; padding-left: 0px; margin-top: 12px; margin-bottom: 0px; font-size: 15px; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">連接</p><br/></section></section></section></section><section><section><section><section><p style="text-align:center"><img src="/uploads/allimg/20240831/1-240S1100330111.png"/></p></section><p><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">Cu / Steel</span></p><p style="box-sizing: border-box; padding-left: 0px; margin-top: 12px; margin-bottom: 0px; font-size: 15px; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">引線框架</p></section></section></section><section><section><section><section><p style="text-align:center"><img src="/uploads/allimg/20240831/1-240S1100403645.png"/></p></section><section><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">Cu / Polymer(CVD)</span></span><p style="box-sizing: border-box; padding-left: 0px; margin-top: 12px; margin-bottom: 0px; font-size: 15px; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">射頻識別、FCCL</p><br/></section></section></section></section></section>

<div class="plastic_t" style="text-wrap: wrap; box-sizing: border-box; margin-bottom: 50px; background-image: url("uploads/images/h3_bg.png"); background-position: left center; background-size: initial; background-repeat: no-repeat; background-attachment: initial; background-origin: initial; background-clip: initial; font-family: "Microsoft Yahei", sans-serif; font-size: 14px;"><span style="box-sizing: border-box; display: block; padding-left: 30px; font-size: 25px; font-weight: 600; color: rgb(5, 5, 5);"><span style="color: rgb(5, 5, 5); font-family: "Microsoft Yahei", sans-serif; font-size: 25px; font-weight: 600; text-wrap: wrap;">電鍍說明</span></span></div><p style="box-sizing: border-box; padding-left: 0px; margin-top: 0px; margin-bottom: 0px; color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">錦華隆的合金電鍍用于磁性或磁阻材料，性能遠遠優于單純電鍍產品。</p><p style="box-sizing: border-box; padding-left: 0px; margin-top: 0px; margin-bottom: 0px; color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">例如，錫或錫/鋅等二元合金電鍍擁有優越的延伸率，可以發揮潤滑油的作用，提高潤滑性及耐磨性。因此，在普通鋼板上進行電鍍處理時，可大幅提高深拉（Deep drawing）性能及變形加工性。</p><p style="box-sizing: border-box; padding-left: 0px; margin-top: 0px; margin-bottom: 0px; color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">同時，在鍍鎳銅合金上再加鈷的話，便能維持銅鎳合金的剝離強度及適當?shù)拇判裕部梢酝ㄟ^氯化銅（CuCl2）進行蝕刻的“銅-鎳-鈷”三元合金</p><p style="box-sizing: border-box; padding-left: 0px; margin-top: 0px; margin-bottom: 0px; color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">經過上述特殊處理的二元、三元合金箔提高結合力，與不容易粘貼的PI材料進行結合起來，而廣泛適用于FPC、PTC、FCCL材料。</p><p style="box-sizing: border-box; padding-left: 0px; margin-top: 0px; margin-bottom: 0px; color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">本公司，按照客戶的產品結構和粗度，在各種金屬箔上可以進行多種厚度（幾百納米～幾十微米）的多元合金的電鍍層。</p><section class="two_list_ar" style="display: flex;gap: 20px;text-align: center;"><section class="" style="flex: 0.5;"><p><br/></p><p><img src="/uploads/allimg/20240831/1-240S10944404C.jpg"/></p><br/><p><span style="color: rgb(51, 51, 51); font-family: "Microsoft Yahei", sans-serif; font-size: 18px; font-weight: 600; text-align: center; text-wrap: wrap;">代表性原材料</span></p><p><span style="color: rgb(51, 51, 51); font-family: "Microsoft Yahei", sans-serif; font-size: 15px; text-align: center; text-wrap: wrap;"><span style="color: rgb(51, 51, 51); font-family: "Microsoft Yahei", sans-serif; font-size: 15px; text-align: center; text-wrap: wrap;">壓延銅箔 / 電解銅箔 / 不銹鋼箔 / 鋁箔</span></span></p></section><section class="" style="flex: 0.5;"><p><br/></p><p><img src="/uploads/allimg/20240831/1-240S10945103G.jpg"/></p><p><span style="color: rgb(51, 51, 51); font-family: "Microsoft Yahei", sans-serif; font-size: 18px; font-weight: 600; text-align: center; text-wrap: wrap;"><br/></span></p><p><span style="color: rgb(51, 51, 51); font-family: "Microsoft Yahei", sans-serif; font-size: 18px; font-weight: 600; text-align: center; text-wrap: wrap;">代表性電鍍材料</span></p><p><span style="color: rgb(51, 51, 51); font-family: "Microsoft Yahei", sans-serif; font-size: 15px; text-align: center; text-wrap: wrap;"><span style="color: rgb(51, 51, 51); font-family: "Microsoft Yahei", sans-serif; font-size: 15px; text-align: center; text-wrap: wrap;">銅 / 鎳 / 錫 / 鋅 / 鈷</span></span></p></section></section><p style="text-wrap: wrap;"><br/></p><div class="plastic_t" style="text-wrap: wrap; box-sizing: border-box; margin-bottom: 50px; background-image: url("uploads/images/h3_bg.png"); background-position: left center; background-size: initial; background-repeat: no-repeat; background-attachment: initial; background-origin: initial; background-clip: initial; font-family: "Microsoft Yahei", sans-serif; font-size: 14px;"><span style="box-sizing: border-box; display: block; padding-left: 30px; font-size: 25px; font-weight: 600; color: rgb(5, 5, 5);"><span style="color: rgb(5, 5, 5); font-family: "Microsoft Yahei", sans-serif; font-size: 25px; font-weight: 600; text-wrap: wrap;">產品示例</span></span></div><p style="margin-top: 0px; margin-bottom: 0px; box-sizing: border-box; padding-left: 0px;"><span style="color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"><span style="color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">二元合金</span></span></p><p><img src="/uploads/allimg/20240831/1-240S1102554224.jpg"/></p><p style="margin-top: 0px; margin-bottom: 0px; box-sizing: border-box; padding-left: 0px;"><span style="color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"><br/></span></p><p style="margin-top: 0px; margin-bottom: 0px; box-sizing: border-box; padding-left: 0px;"><span style="color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"><span style="color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; letter-spacing: 1.5px; text-wrap: wrap; background-color: rgb(255, 255, 255);">三元合金</span></span></p><p style="margin-top: 0px; margin-bottom: 0px; box-sizing: border-box; padding-left: 0px;"><span style="color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"><span style="color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; letter-spacing: 1.5px; text-wrap: wrap; background-color: rgb(255, 255, 255);"></span></span></p><p><img src="/uploads/allimg/20240831/1-240S11026432b.jpg"/></p><p style="margin-top: 0px; margin-bottom: 0px; box-sizing: border-box; padding-left: 0px;"><span style="color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"><span style="color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; letter-spacing: 1.5px; text-wrap: wrap; background-color: rgb(255, 255, 255);"></span></span><br/></p><p style="margin-top: 0px; margin-bottom: 0px; box-sizing: border-box; padding-left: 0px;"><br/></p><div class="plastic_t" style="text-wrap: wrap; box-sizing: border-box; margin-bottom: 50px; background-image: url("uploads/images/h3_bg.png"); background-position: left center; background-size: initial; background-repeat: no-repeat; background-attachment: initial; background-origin: initial; background-clip: initial; font-family: "Microsoft Yahei", sans-serif; font-size: 14px;"><span style="box-sizing: border-box; display: block; padding-left: 30px; font-size: 25px; font-weight: 600; color: rgb(5, 5, 5);"><span style="color: rgb(5, 5, 5); font-family: "Microsoft Yahei", sans-serif; font-size: 25px; font-weight: 600; text-wrap: wrap;">電鍍表面照片</span></span></div><p style="margin-top: 0px; margin-bottom: 0px; box-sizing: border-box; padding-left: 0px;"><br style="text-wrap: wrap;"/></p><section class="two_list_ar" style="display: flex;gap: 20px;text-align: center;"><section class="" style="flex: 0.5;"><div><p><img src="/uploads/allimg/20240831/1-240S1102K5926.jpg"/></p><p><br/></p></div><p><span style="color: rgb(51, 51, 51); font-family: "Microsoft Yahei", sans-serif; font-size: 18px; font-weight: 600; text-align: center; text-wrap: wrap;">亞光面形態</span></p></section><section class="" style="flex: 0.5;"><p><img src="/uploads/allimg/20240831/1-240S1102Q9514.jpg"/></p><p><br/></p><p><span style="color: rgb(51, 51, 51); font-family: "Microsoft Yahei", sans-serif; font-size: 18px; font-weight: 600;">閃亮的一面</span></p></section></section><p><br/></p><div class="plastic_t" style="text-wrap: wrap; box-sizing: border-box; margin-bottom: 50px; background-image: url("uploads/images/h3_bg.png"); background-position: left center; background-size: initial; background-repeat: no-repeat; background-attachment: initial; background-origin: initial; background-clip: initial; font-family: "Microsoft Yahei", sans-serif; font-size: 14px;"><span style="box-sizing: border-box; display: block; padding-left: 30px; font-size: 25px; font-weight: 600; color: rgb(5, 5, 5);"><span style="color: rgb(5, 5, 5); font-family: "Microsoft Yahei", sans-serif; font-size: 25px; font-weight: 600; text-wrap: wrap;">電鍍說明</span></span></div><p><br/></p><section class="three_list_ar" style="display: grid;grid-template-columns: repeat(4,1fr);grid-gap: 30px;"><section><section><section><section><p style="text-align:center"><img src="/uploads/allimg/20240831/1-240S1102945A3.png"/></p></section><section><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"></span><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">Co, Ni, Cu / Cu</span></span><p style="box-sizing: border-box; padding-left: 0px; margin-top: 12px; margin-bottom: 0px; font-size: 15px; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">手機、液晶</p><br/></section></section></section></section><section><section><section><section><p style="text-align:center"><img src="/uploads/allimg/20240831/1-240S110295K55.png"/></p></section><section><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"></span><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">Co, Ni, Cu / Cu</span></span><p style="box-sizing: border-box; padding-left: 0px; margin-top: 12px; margin-bottom: 0px; font-size: 15px; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">FPC磁頭</p><br/></section></section></section></section><section><section><section><section><p style="text-align:center"><img src="/uploads/allimg/20240831/1-240S1103013105.png"/></p></section><p><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"></span><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">Co, Ni, Cu / Cu</span></p><p style="box-sizing: border-box; padding-left: 0px; margin-top: 12px; margin-bottom: 0px; font-size: 15px; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">LED印刷電路</p><p><br/></p></section></section></section><section><section><section><section><p style="text-align:center"><img src="/uploads/allimg/20240925/1-2409251F230637.png"/></p></section><section><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"></span><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">Co, Ni, Cu / Cu</span></span><p style="box-sizing: border-box; padding-left: 0px; margin-top: 12px; margin-bottom: 0px; font-size: 15px; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">精細圖案印刷電路</p><br/></section></section></section></section></section>

<div class="plastic_t" style="text-wrap: wrap; box-sizing: border-box; margin-bottom: 50px; background-image: url("uploads/images/h3_bg.png"); background-position: left center; background-size: initial; background-repeat: no-repeat; background-attachment: initial; background-origin: initial; background-clip: initial; font-family: "Microsoft Yahei", sans-serif; font-size: 14px;"><span style="box-sizing: border-box; display: block; padding-left: 30px; font-size: 25px; font-weight: 600; color: rgb(5, 5, 5);"><span style="color: rgb(5, 5, 5); font-family: "Microsoft Yahei", sans-serif; font-size: 25px; font-weight: 600; text-wrap: wrap;"><span style="color: rgb(5, 5, 5); font-family: "Microsoft Yahei", sans-serif; font-size: 25px; font-weight: 600; text-wrap: wrap;">防銹電鍍技術開發的概要</span></span></span></div><p style="box-sizing: border-box; padding-left: 0px; margin-top: 0px; margin-bottom: 0px; color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">高溫高濕測試完畢（溫度：85℃，濕度：85%）。</p><p style="box-sizing: border-box; padding-left: 0px; margin-top: 0px; margin-bottom: 0px; color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">增強熱變色等耐熱性能。</p><p style="text-wrap: wrap;"><br/></p><p style="text-align:center"><img src="/uploads/allimg/20240831/1-240S1104546116.jpg"/></p><p><br/></p><p><span style="color: rgb(86, 86, 86); font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">表面顏色</span></p><p style="text-align:center"><img src="/uploads/allimg/20240831/1-240S1104612130.jpg"/></p><p><br/></p><p><br/></p><div class="plastic_t" style="text-wrap: wrap; box-sizing: border-box; margin-bottom: 50px; background-image: url("uploads/images/h3_bg.png"); background-position: left center; background-size: initial; background-repeat: no-repeat; background-attachment: initial; background-origin: initial; background-clip: initial; font-family: "Microsoft Yahei", sans-serif; font-size: 14px;"><span style="box-sizing: border-box; display: block; padding-left: 30px; font-size: 25px; font-weight: 600; color: rgb(5, 5, 5);"><span style="color: rgb(5, 5, 5); font-family: "Microsoft Yahei", sans-serif; font-size: 25px; font-weight: 600; text-wrap: wrap;"><span style="color: rgb(5, 5, 5); font-family: "Microsoft Yahei", sans-serif; font-size: 25px; font-weight: 600; text-wrap: wrap;">鍍層厚度</span></span></span></div><p style="text-align:center"><img src="/uploads/allimg/20240831/1-240S11049144A.jpg"/></p><p><br/></p><p><br/></p><div class="plastic_t" style="text-wrap: wrap; box-sizing: border-box; margin-bottom: 50px; background-image: url("uploads/images/h3_bg.png"); background-position: left center; background-size: initial; background-repeat: no-repeat; background-attachment: initial; background-origin: initial; background-clip: initial; font-family: "Microsoft Yahei", sans-serif; font-size: 14px;"><span style="box-sizing: border-box; display: block; padding-left: 30px; font-size: 25px; font-weight: 600; color: rgb(5, 5, 5);"><span style="color: rgb(5, 5, 5); font-family: "Microsoft Yahei", sans-serif; font-size: 25px; font-weight: 600; text-wrap: wrap;">熱變色測試結果（200℃，30分鐘）</span></span></div><p style="text-align:center"><img src="/uploads/allimg/20240831/1-240S1104943P5.jpg"/></p><p><br/></p><p><br/></p><div class="plastic_t" style="text-wrap: wrap; box-sizing: border-box; margin-bottom: 50px; background-image: url("uploads/images/h3_bg.png"); background-position: left center; background-size: initial; background-repeat: no-repeat; background-attachment: initial; background-origin: initial; background-clip: initial; font-family: "Microsoft Yahei", sans-serif; font-size: 14px;"><span style="box-sizing: border-box; display: block; padding-left: 30px; font-size: 25px; font-weight: 600; color: rgb(5, 5, 5);"><span style="color: rgb(5, 5, 5); font-family: "Microsoft Yahei", sans-serif; font-size: 25px; font-weight: 600; text-wrap: wrap;">適用范圍</span></span></div><p style="margin-top: 0px; margin-bottom: 0px; box-sizing: border-box; padding-left: 0px;"><br style="text-wrap: wrap;"/></p><p style="margin-top: 0px; margin-bottom: 0px; box-sizing: border-box; padding-left: 0px;"><br/></p><div class="plastic_t" style="text-wrap: wrap; box-sizing: border-box; margin-bottom: 50px; background-image: url("uploads/images/h3_bg.png"); background-position: left center; background-size: initial; background-repeat: no-repeat; background-attachment: initial; background-origin: initial; background-clip: initial; font-family: "Microsoft Yahei", sans-serif; font-size: 14px;"><span style="box-sizing: border-box; display: block; padding-left: 30px; font-size: 25px; font-weight: 600; color: rgb(5, 5, 5);"><span style="color: rgb(5, 5, 5); font-family: "Microsoft Yahei", sans-serif; font-size: 25px; font-weight: 600; text-wrap: wrap;"><span style="color: rgb(5, 5, 5); font-family: "Microsoft Yahei", sans-serif; font-size: 25px; font-weight: 600; text-wrap: wrap;">多元電鍍的適用范圍</span></span></span></div><p><br/></p><section class="three_list_ar" style="display: grid;grid-template-columns: repeat(4,1fr);grid-gap: 30px;"><section><section><section><section><p style="text-align:center"><img src="/uploads/allimg/20240831/1-240S1102945A3.png"/></p></section><section><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"></span><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">Co, Ni, Cu / Cu</span></span><p style="box-sizing: border-box; padding-left: 0px; margin-top: 12px; margin-bottom: 0px; font-size: 15px; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">FCCL</p><br/></section></section></section></section><section><section><section><section><p style="text-align:center"><img src="/uploads/allimg/20240831/1-240S110295K55.png"/></p></section><section><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"></span><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">Co, Ni, Cu / Cu</span></span><p style="box-sizing: border-box; padding-left: 0px; margin-top: 12px; margin-bottom: 0px; font-size: 15px; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">FPC磁頭</p><br/></section></section></section></section><section><section><section><section><p style="text-align:center"><img src="/uploads/allimg/20240831/1-240S1103013105.png"/></p></section><p><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"></span><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">Co, Ni, Cu / Cu</span></p><p style="box-sizing: border-box; padding-left: 0px; margin-top: 12px; margin-bottom: 0px; font-size: 15px; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">LED印刷電路</p><p><br/></p></section></section></section><section><section><section><section><p style="text-align:center"><img src="/uploads/allimg/20240925/1-2409251F230637.png"/></p></section><section><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;"></span><span style="box-sizing: border-box; display: block; font-size: 18px; font-weight: 600; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">Co, Ni, Cu / Cu</span></span><p style="box-sizing: border-box; padding-left: 0px; margin-top: 12px; margin-bottom: 0px; font-size: 15px; color: rgb(51, 51, 51); text-align: center; font-family: "Microsoft Yahei", sans-serif; text-wrap: wrap;">精細圖案印刷電路</p><br/></section></section></section></section></section>
